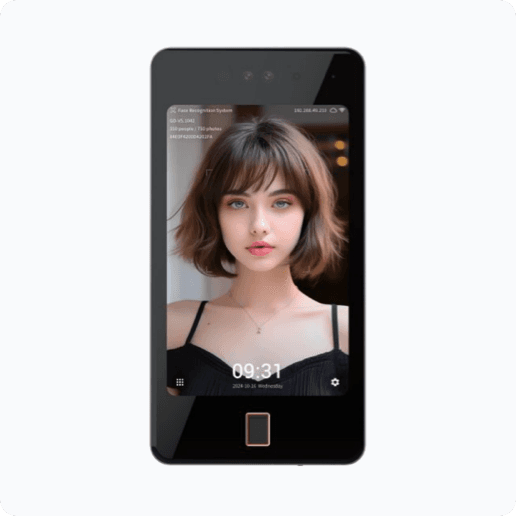

UFace 8 Pro-FP
High-end AI Face Recognition Terminal
- Industrial design, stable performance, and smooth outline
- Anti-backlight
- Live detection algorithm against printed (color and B/W photos), videos, and 3D masks attack
- Less than 1s high-speed facial verification
- The recognition accuracy of 99.99% (99.77% recognition rate at 1% FAR; 99.27% recognition rate at 0.1% FAR)
- Register standard 50,000 faces (Optional 100,000) and 5,000 fingerprints (Optional)
- POE (IEEE802.3af)
Capacity
| Faces | 50,000 (Optional 100,000) |
| Cards | 50,000 (Optional 100,000) |
| Logs | Max. 200,000 without pictures, 50,000 with pictures |
Interfaces
| Communication Modes | TCP/IP (Support POE), WIFI, Bluetooth |
| I/O | Relay, Wiegand input/output, RS232, RS485, Door sensor, Exit button, USB (Type A & Type C) |
Functions
| Face Recognition | Live detection |
| Upgrade Modes | Online, USB |
| Supported Software | Standalone, Ustar, Ustar Cloud, Ustar Mobile, Ustar Access, Web Server |
Hardware
| Memory | 1GB RAM + 8GB ROM |
| CPU | Dual-core ARM Cortex-A7, RISC-V MCU, Linux |
| NPU | 1.2 Tops |
| Screen | 8-inch IPS full-view LCD touch screen |
| Cameras | IR, RGB dual-lens camera, Recognition distance (0.3m~1.5m) |
| Card Modules | Standard EM & MIFARE Card, NFC |
| Fingerprint Module | 5,000 fingerprints |
| 4G Module | N/A |
General
| Working Temperature | -40°C~50°C |
| Storage Temperature | -20°C~60°C |
| Working Humidity | 10%~90% |
| IP Rate | IP65 |
| Power Supply | DC 12V/2A |
| Power Consumption | Max. 15W |
| Dimensions | 248mm*128mm*22mm |
| Certificates | CE, FCC |
